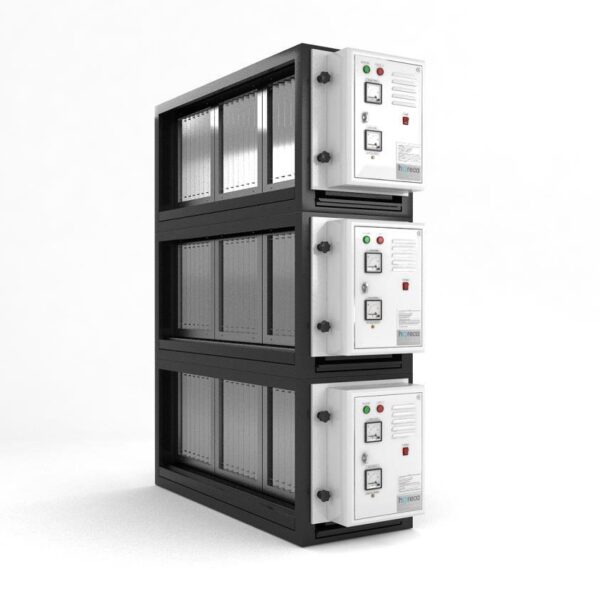

HMD-2700ELEKTROSTATİK FİLTRE
HMD-2700ELEKTROSTATİK FİLTRE 12.495,00 € (+ TVA)
Back to products
PORTABLE COOKING UNIT
PORTABLE COOKING UNIT (+ TVA)
Click to enlarge

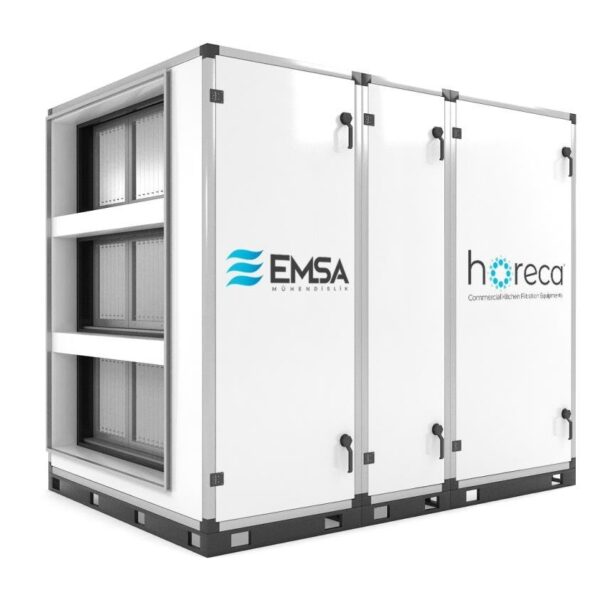

Electrostatic Filtri Și Filtri Carbon Active

(+ TVA)

Favorite
Compare
12 People watching this product now!

Fast Shipping

Carrier information

20k products

Payment methods

24/7 Support

Unlimited help desk

2-day Delivery

Track or off orders

Description

It is the most effective system that gathers all the necessary equipment for industrial kitchen filtration into a single central unit.

KEFU-250 ECOLOGY UNIT

  KEFU-250/16-TG KEFU-250/16-ÇG KEFU-250/24-TG KEFU-250/24-ÇG
ELECTROSTATIC FILTER CAPACITY 2,500 m³/h 2,500 m³/h 2,500 m³/h 2,500 m³/h
ACTIVATED CARBON FILTER CAPACITY 3,500 m³/h 3,500 m³/h 5,200 m³/h 5,200 m³/h
FAN CAPACITY 2,500 m³/h 2,500 m³/h 2,500 m³/h 2,500 m³/h
ELECTROSTATIC FILTER MODEL HMD-300 HMD-300 HMD-300 HMD-300
ELECTROSTATIC FILTER PASS NUMBER 1 2 1 2
COLLECTOR CELL QUANTITY 1 2 1 2
ACTIVATED CARBON FILTER CARTRIDGE QUANTITY 16 16 24 24
STATIC PRESSURE LOSS OUTSIDE THE DEVICE 500 Pa 500 Pa 500 Pa 500 Pa
TOTAL PRESSURE LOSS 1000 Pa 1000 Pa 1000 Pa 1000 Pa
FAN TYPE PLUG fan PLUG fan PLUG fan PLUG fan
MOTOR POWER 1.1 kW 1.1 kW 1.1 kW 1.1 kW
MOTOR SPEED 2885 rpm 2885 rpm 2885 rpm 2885 rpm
FAN SPEED 2878 rpm 2878 rpm 2878 rpm 2878 rpm
SOUND LEVEL 82 dB 82 dB 82 dB 82 dB
FREQUENCY INVERTER STANDARD STANDARD STANDARD STANDARD
AUTOMATION PANEL OPTIONAL OPTIONAL OPTIONAL OPTIONAL
DEVICE DIMENSIONS (WxHxD) 2350 mm x 750 mm x 800 mm 3100 mm x 750 mm x 800 mm 2350 mm x 1100 mm x 800 mm 3100 mm x 1100 mm x 800 mm
INLET SECTION (WxH) 503 mm x 450 mm 503 mm x 450 mm 503 mm x 450 mm 503 mm x 450 mm
OUTLET SECTION (WxH) 300 mm x 400 mm 300 mm x 400 mm 300 mm x 400 mm 300 mm x 400 mm
MASS 365 kg 420 kg 400 kg 460 kg
ORIGIN Turkey Turkey Turkey Turkey

* Technical specifications are subject to change without prior notice due to our continuous R&D efforts.

KEFU-500 ECOLOGY UNIT

  KEFU-500/24-TG KEFU-500/24-CG KEFU-500/32-TG KEFU-500/32-CG
ELECTROSTATIC FILTER CAPACITY 5,000 m³/h 5,000 m³/h 5,000 m³/h 5,000 m³/h
ACTIVE CARBON FILTER CAPACITY 5,200 m³/h 5,200 m³/h 7,000 m³/h 7,000 m³/h
FAN CAPACITY 5,000 m³/h 5,000 m³/h 5,000 m³/h 5,000 m³/h
ELECTROSTATIC FILTER MODEL HMD-600 HMD-600 HMD-600 HMD-600
ELECTROSTATIC FILTER PASSAGE COUNT 1 2 1 2
COLLECTOR CELL QUANTITY 2 4 2 4
ACTIVE CARBON FILTER CARTRIDGE COUNT 24 Pieces 24 Pieces 32 Pieces 32 Pieces
DEVICE EXTERNAL STATIC PRESSURE LOSS 500 Pa 500 Pa 500 Pa 500 Pa
TOTAL PRESSURE LOSS 1000 Pa 1000 Pa 1000 Pa 1000 Pa
FAN TYPE PLUG fan PLUG fan PLUG fan PLUG fan
MOTOR POWER 2.2 kW 2.2 kW 2.2 kW 2.2 kW
MOTOR SPEED 2875 rpm 2875 rpm 2875 rpm 2875 rpm
FAN SPEED 3000 rpm 3000 rpm 3000 rpm 3000 rpm
SOUND LEVEL 83 dB 83 dB 83 dB 83 dB
FREQUENCY INVERTER STANDARD STANDARD STANDARD STANDARD
AUTOMATION PANEL OPTIONAL OPTIONAL OPTIONAL OPTIONAL
DEVICE DIMENSIONS (WxLxH) 2400 mm x 750 mm x 1250 mm 3100 mm x 750 mm x 1250 mm 2400 mm x 750 mm x 1400 mm 3100 mm x 750 mm x 1400 mm
INLET SECTION (WxH) 503 mm x 927 mm 503 mm x 927 mm 503 mm x 927 mm 503 mm x 927 mm
OUTLET SECTION (WxH) 300 mm x 500 mm 300 mm x 500 mm 300 mm x 500 mm 300 mm x 500 mm
MASS 600 kg 685 kg 625 kg 700 kg
ORIGIN Turkey Turkey Turkey Turkey

KEFU-750 ECOLOGY UNIT

  KEFU-750/32-TG KEFU-750/32-CG KEFU-750/40-TG KEFU-750/40-CG
ELECTROSTATIC FILTER CAPACITY 7,500 m³/h 7,500 m³/h 7,500 m³/h 7,500 m³/h
ACTIVE CARBON FILTER CAPACITY 7,000 m³/h 7,000 m³/h 8,800 m³/h 8,800 m³/h
FAN CAPACITY 7,500 m³/h 7,500 m³/h 7,500 m³/h 7,500 m³/h
ELECTROSTATIC FILTER MODEL HMD-900 HMD-900 HMD-900 HMD-900
ELECTROSTATIC FILTER PASSAGE NUMBER 1 2 1 2
COLLECTOR CELL NUMBER 3 6 3 6
ACTIVE CARBON FILTER CAR TRIDGE NUMBER 32 Pieces 32 Pieces 40 Pieces 40 Pieces
DEVICE EXTERNAL STATIC PRESSURE LOSS 500 Pa 500 Pa 500 Pa 500 Pa
TOTAL PRESSURE LOSS 1000 Pa 1000 Pa 1000 Pa 1000 Pa
FAN TYPE PLUG fan PLUG fan PLUG fan PLUG fan
MOTOR POWER 4 kW 4 kW 4 kW 4 kW
MOTOR SPEED 3150 rpm 3150 rpm 3150 rpm 3150 rpm
FAN SPEED 2951 rpm 2951 rpm 2951 rpm 2951 rpm
SOUND LEVEL 85 dB 85 dB 85 dB 85 dB
FREQUENCY INVERTER STANDARD STANDARD STANDARD STANDARD
AUTOMATION PANEL OPTIONAL OPTIONAL OPTIONAL OPTIONAL
DEVICE DIMENSIONS (WxHxD) 2500 mm x 800 mm x 1750 mm 3100 mm x 750 mm x 1250 mm 2400 mm x 750 mm x 1400 mm 3100 mm x 750 mm x 1400 mm
INLET SECTION (DxH) 503 mm x 1417 mm 503 mm x 1417 mm 503 mm x 1417 mm 503 mm x 1417 mm
OUTLET SECTION (WxH) 450 mm x 500 mm 450 mm x 500 mm 450 mm x 500 mm 450 mm x 500 mm
MASS 600 kg 685 kg 625 kg 700 kg
ORIGIN Turkey Turkey Turkey Turkey

KEFU-1000 ECOLOGY UNIT

  KEFU-1000/48-TG KEFU-1000/48-CG KEFU-1000/64-TG KEFU-1000/64-CG
ELECTROSTATIC FILTER CAPACITY 10,000 m³/h 10,000 m³/h 10,000 m³/h 10,000 m³/h
ACTIVE CARBON FILTER CAPACITY 10,500 m³/h 10,500 m³/h 14,000 m³/h 14,000 m³/h
FAN CAPACITY 10,000 m³/h 10,000 m³/h 10,000 m³/h 10,000 m³/h
ELECTROSTATIC FILTER MODEL HMD-1200 HMD-1200 HMD-1200 HMD-1200
ELECTROSTATIC FILTER PASS COUNT 1 2 1 2
COLLECTOR CELL QUANTITY 4 8 4 8
ACTIVE CARBON FILTER CARTRIDGE QUANTITY 48 Pieces 48 Pieces 64 Pieces 64 Pieces
STATIC PRESSURE DROP OUTSIDE DEVICE 500 Pa 500 Pa 500 Pa 500 Pa
TOTAL PRESSURE DROP 1000 Pa 1000 Pa 1000 Pa 1000 Pa
FAN TYPE PLUG fan PLUG fan PLUG fan PLUG fan
MOTOR POWER 5.5 kW 5.5 kW 5.5 kW 5.5 kW
MOTOR SPEED 2870 rpm 2870 rpm 2870 rpm 2870 rpm
FAN SPEED 2731 rpm 2731 rpm 2731 rpm 2731 rpm
SOUND LEVEL 85 dB 85 dB 85 dB 85 dB
FREQUENCY INVERTER STANDARD STANDARD STANDARD STANDARD
AUTOMATION PANEL OPTIONAL OPTIONAL OPTIONAL OPTIONAL
DEVICE DIMENSIONS (WxHxD) 2500 mm x 1350 mm x 1400 mm 3250 mm x 1350 mm x 1250 mm 2500 mm x 1400 mm x 1400 mm 3250 mm x 1400 mm x 1400 mm
INLET SECTION (WxH) 1103 mm x 927 mm 1103 mm x 927 mm 1103 mm x 927 mm 1103 mm x 927 mm
OUTLET SECTION (WxH) 450 mm x 600 mm 450 mm x 600 mm 450 mm x 600 mm 450 mm x 600 mm
MASS 750 kg 830 kg 825 kg 925 kg
POWER CONSUMPTION 16.4 A 16.4 A 16.4 A 16.4 A

KEFU-1250 ECOLOGY UNIT

  KEFU-1250/56-TG KEFU-1250/56-CG KEFU-1250/72-TG KEFU-1250/72-CG
ELECTROSTATIC FILTER CAPACITY 15,000 m³/h 15,000 m³/h 15,000 m³/h 15,000 m³/h
ACTIVE CARBON FILTER CAPACITY 12,000 m³/h 12,000 m³/h 15,500 m³/h 15,500 m³/h
FAN CAPACITY 15,000 m³/h 15,000 m³/h 15,000 m³/h 15,000 m³/h
ELECTROSTATIC FILTER MODEL HMD-1800 HMD-1800 HMD-1800 HMD-1800
ACTIVE CARBON FILTER MODEL MG-1250 MG-1250 MG-1600 MG-1600
FAN MODEL TFD-56 TFD-56 TFD-72 TFD-72
DIMENSION (L x W x H) 1800 x 1200 x 1680 mm 1800 x 1200 x 1680 mm 1800 x 1200 x 1680 mm 1800 x 1200 x 1680 mm
DIMENSIONS OF THE DEVICE (AxBxC) 2700 mm x 1400 mm x 1750 mm 3450 mm x 1400 mm x 1750 mm 2700 mm x 1400 mm x 1750 mm 3450 mm x 1400 mm x 1750 mm
INLET SECTION (DxE) 1103 mm x 1417 mm 1103 mm x 1417 mm 1103 mm x 1417 mm 1103 mm x 1417 mm
OUTLET SECTION (FxG) 500 mm x 800 mm 500 mm x 800 mm 500 mm x 800 mm 500 mm x 800 mm
MASS 1050 kg 1200 kg 1150 kg 1300 kg
ORIGIN Turkey Turkey Turkey Turkey

KEFU-1750 ECOLOGY UNIT

  KEFU-1750/80-TG KEFU-1750/80-CG KEFU-1750/104-TG KEFU-1750/104-CG
ELECTROSTATIC FILTER CAPACITY 22,500 m³/h 22,500 m³/h 22,500 m³/h 22,500 m³/h
ACTIVE CARBON FILTER CAPACITY 17,500 m³/h 17,500 m³/h 22,500 m³/h 22,500 m³/h
FAN CAPACITY 22,500 m³/h 22,500 m³/h 22,500 m³/h 22,500 m³/h
ELECTROSTATIC FILTER MODEL HMD-2700 HMD-2700 HMD-2700 HMD-2700
ELECTROSTATIC FILTER PASS COUNT 1 2 1 2
COLLECTOR CELL QUANTITY 9 18 9 18
ACTIVE CARBON FILTER CARTRIDGE COUNT 80 Pieces 80 Pieces 104 Pieces 104 Pieces
STATIC PRESSURE LOSS OUTSIDE DEVICE 500 Pa 500 Pa 500 Pa 500 Pa
TOTAL PRESSURE LOSS 1000 Pa 1000 Pa 1000 Pa 1000 Pa
FAN TYPE PLUG fan PLUG fan PLUG fan PLUG fan
MOTOR POWER 11 kW 11 kW 11 kW 11 kW
MOTOR SPEED 2060 rpm 2060 rpm 2060 rpm 2060 rpm
FAN SPEED 1954 rpm 1954 rpm 1954 rpm 1954 rpm
SOUND LEVEL 88 dB 88 dB 88 dB 88 dB
FREQUENCY INVERTER STANDARD STANDARD STANDARD STANDARD
AUTOMATION PANEL OPTIONAL OPTIONAL OPTIONAL OPTIONAL
DEVICE DIMENSIONS (WxLxH) 2700 mm x 1950 mm x 1750 mm 3450 mm x 1950 mm x 1750 mm 2700 mm x 2000 mm x 1750 mm 3450 mm x 2000 mm x 1750 mm
INLET SECTION (WxH) 1703 mm x 1417 mm 1703 mm x 1417 mm 1703 mm x 1417 mm 1703 mm x 1417 mm
OUTLET SECTION (WxH) 500 mm x 800 mm 500 mm x 800 mm 500 mm x 800 mm 500 mm x 800 mm
WEIGHT 1350 kg 1500 kg 1400 kg 1550 kg
ORIGIN Turkey Turkey Turkey Turkey

KEFU-2000 ECOLOGY UNITS

  KEFU-2000/96-TG KEFU-2000/96-CG KEFU-2000/120-TG KEFU-2000/120-CG
ELECTROSTATIC FILTER CAPACITY 22,500 m³/h 22,500 m³/h 22,500 m³/h 22,500 m³/h
ACTIVE CARBON FILTER CAPACITY 21,000 m³/h 21,000 m³/h 26,000 m³/h 26,000 m³/h
FAN CAPACITY 22,500 m³/h 22,500 m³/h 22,500 m³/h 22,500 m³/h
ELECTROSTATIC FILTER MODEL HMD-2700 HMD-2700 HMD-2700 HMD-2700
ELECTROSTATIC FILTER PASS COUNT 1 2 1 2
COLLECTOR CELL QUANTITY 9 18 9 18
ACTIVE CARBON FILTER CARTRIDGE QUANTITY 96 Pieces 96 Pieces 120 Pieces 120 Pieces
STATIC PRESSURE LOSS OUTSIDE THE DEVICE 500 Pa 500 Pa 500 Pa 500 Pa
TOTAL PRESSURE LOSS 1000 Pa 1000 Pa 1000 Pa 1000 Pa
FAN TYPE PLUG fan PLUG fan PLUG fan PLUG fan
MOTOR POWER 11 kW 11 kW 11 kW 11 kW
MOTOR SPEED 2060 rpm 2060 rpm 2060 rpm 2060 rpm
FAN SPEED 1954 rpm 1954 rpm 1954 rpm 1954 rpm
SOUND LEVEL 88 dB 88 dB 88 dB 88 dB
FREQUENCY INVERTER STANDARD STANDARD STANDARD STANDARD
AUTOMATION PANEL OPTIONAL OPTIONAL OPTIONAL OPTIONAL
DEVICE DIMENSIONS (AxBxC) 2700 mm x 2000 mm x 1750 mm 3450 mm x 2000 mm x 1750 mm 2700 mm x 2000 mm x 1750 mm 3450 mm x 2000 mm x 1750 mm
INLET SECTION (DxE) 1703 mm x 1417 mm 1703 mm x 1417 mm 1703 mm x 1417 mm 1703 mm x 1417 mm
OUTLET SECTION (FxG) 500 mm x 800 mm 500 mm x 800 mm 500 mm x 800 mm 500 mm x 800 mm
MASS 1400 kg 1550 kg 1450 kg 1600 kg
ORIGIN Turkey Turkey Turkey Turkey

KEFU-2250 ECOLOGY UNIT

  KEFU-2250/100-TG KEFU-2250/100-CG KEFU-2250/132-TG KEFU-2250/132-CG
ELECTROSTATIC FILTER CAPACITY 22,500 m³/h 22,500 m³/h 22,500 m³/h 22,500 m³/h
ACTIVE CARBON FILTER CAPACITY 22,000 m³/h 22,000 m³/h 29,000 m³/h 29,000 m³/h
FAN CAPACITY 22,500 m³/h 22,500 m³/h 22,500 m³/h 22,500 m³/h
ELECTROSTATIC FILTER MODEL HMD-2700 HMD-2700 HMD-2700 HMD-2700
ELECTROSTATIC FILTER PASSAGE COUNT 1 2 1 2
COLLECTOR CELL COUNT 9 18 9 18
ACTIVE CARBON FILTER CARTRIDGE COUNT 100 pieces 100 pieces 132 pieces 132 pieces
DEVICE EXTERNAL STATIC PRESSURE LOSS 500 Pa 500 Pa 500 Pa 500 Pa
TOTAL PRESSURE LOSS 1000 Pa 1000 Pa 1000 Pa 1000 Pa
FAN TYPE PLUG fan PLUG fan PLUG fan PLUG fan
MOTOR POWER 11 kW 11 kW 11 kW 11 kW
MOTOR SPEED 1710 rpm 1710 rpm 1710 rpm 1710 rpm
FAN SPEED 1540 rpm 1540 rpm 1540 rpm 1540 rpm
SOUND LEVEL 89 dB 89 dB 89 dB 89 dB
FREQUENCY INVERTER STANDARD STANDARD STANDARD STANDARD
AUTOMATION PANEL OPTIONAL OPTIONAL OPTIONAL OPTIONAL
DEVICE DIMENSIONS (WxLxH) 2700 mm x 1950 mm x 1750 mm 3450 mm x 1950 mm x 1750 mm 2700 mm x 2000 mm x 2000 mm 3450 mm x 2000 mm x 2000 mm
INLET SECTION (WxH) 1703 mm x 1417 mm 1703 mm x 1417 mm 1703 mm x 1417 mm 1703 mm x 1417 mm
OUTLET SECTION (WxH) 550 mm x 950 mm 550 mm x 950 mm 550 mm x 950 mm 550 mm x 950 mm
WEIGHT 1450 kg 1600 kg 1500 kg 1650 kg
ORIGIN Turkey Turkey Turkey Turkey

KEFU-2500 ECOLOGY UNIT

  KEFU-2500/128-TG KEFU-2500/128-CG KEFU-2500/144-TG KEFU-2500/144-CG
ELECTROSTATIC FILTER CAPACITY 30,000 m³/h 30,000 m³/h 30,000 m³/h 30,000 m³/h
ACTIVE CARBON FILTER CAPACITY 28,000 m³/h 28,000 m³/h 31,000 m³/h 31,000 m³/h
FAN CAPACITY 30,000 m³/h 30,000 m³/h 30,000 m³/h 30,000 m³/h
ELECTROSTATIC FILTER MODEL HMD-3600 HMD-3600 HMD-3600 HMD-3600
ELECTROSTATIC FILTER PASS COUNT 1 2 1 2
COLLECTOR CELL COUNT 12 24 12 24
ACTIVE CARBON FILTER CARTRIDGE COUNT 128 Pieces 128 Pieces 144 Pieces 144 Pieces
STATIC PRESSURE LOSS OUTSIDE DEVICE 500 Pa 500 Pa 500 Pa 500 Pa
TOTAL PRESSURE LOSS 1000 Pa 1000 Pa 1000 Pa 1000 Pa
FAN TYPE PLUG fan PLUG fan PLUG fan PLUG fan
MOTOR POWER 15 kW 15 kW 15 kW 15 kW
MOTOR SPEED 1880 rpm 1880 rpm 1880 rpm 1880 rpm
FAN SPEED 1861 rpm 1861 rpm 1861 rpm 1861 rpm
SOUND LEVEL 89 dB 89 dB 89 dB 89 dB
FREQUENCY INVERTER STANDARD STANDARD STANDARD STANDARD
AUTOMATION PANEL OPTIONAL OPTIONAL OPTIONAL OPTIONAL
DEVICE DIMENSIONS (AxBxC) 2850 mm x 2600 mm x 1750 mm 3600 mm x 2600 mm x 1750 mm 2850 mm x 2600 mm x 1750 mm 3600 mm x 2600 mm x 1750 mm
INLET SECTION (DxE) 2303 mm x 1417 mm 2303 mm x 1417 mm 2303 mm x 1417 mm 2303 mm x 1417 mm
OUTLET SECTION (FxG) 550 mm x 950 mm 550 mm x 950 mm 550 mm x 950 mm 550 mm x 950 mm
MASS 1800 kg 1950 kg 1900 kg 2050 kg
ORIGIN Turkey Turkey Turkey Turkey
